LD48100 Batería de litio de 48 V 100 Ah 5 kWh Powerwall para respaldo
Long-Lasting LiFePO4 Battery | Easy Installation
Key Information
-

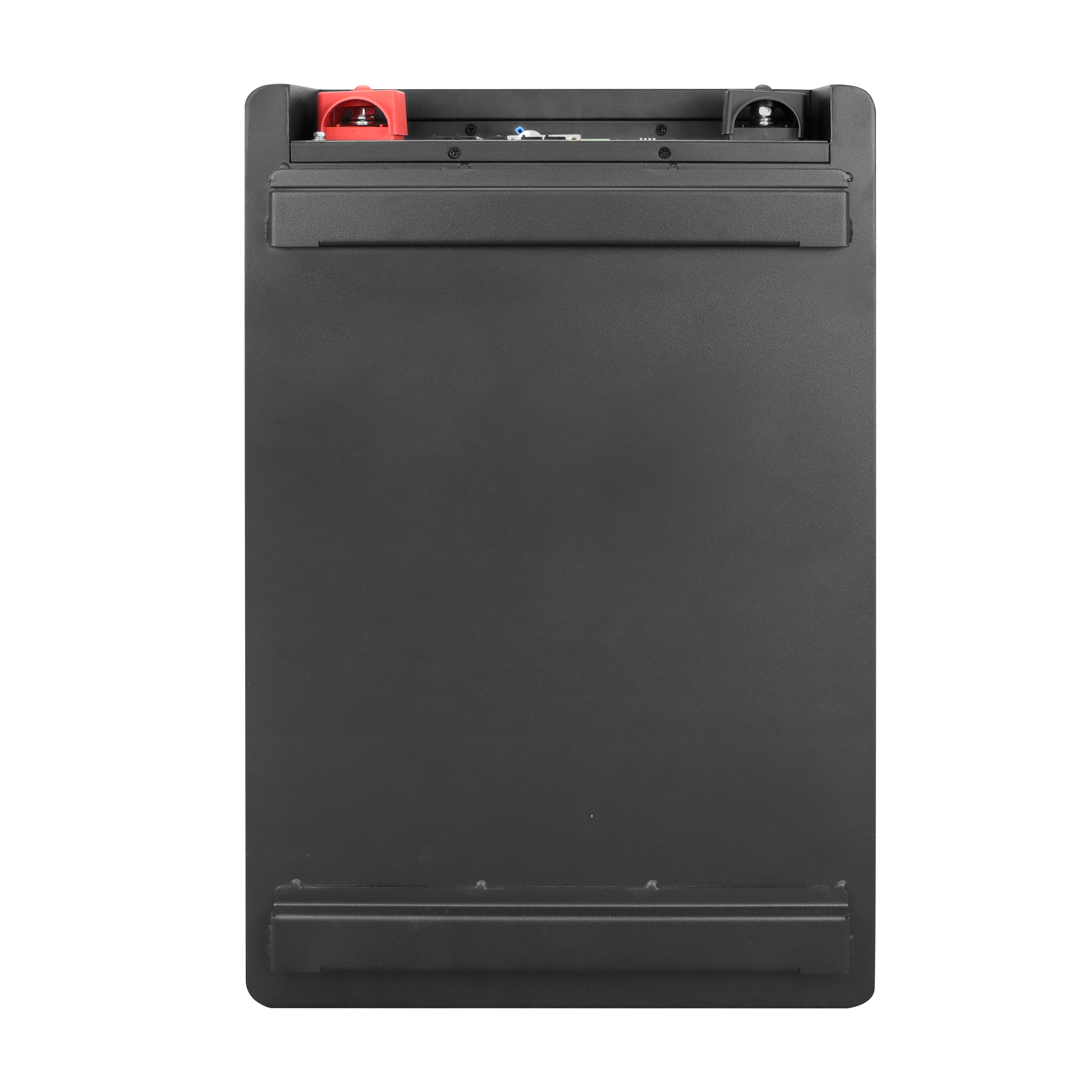

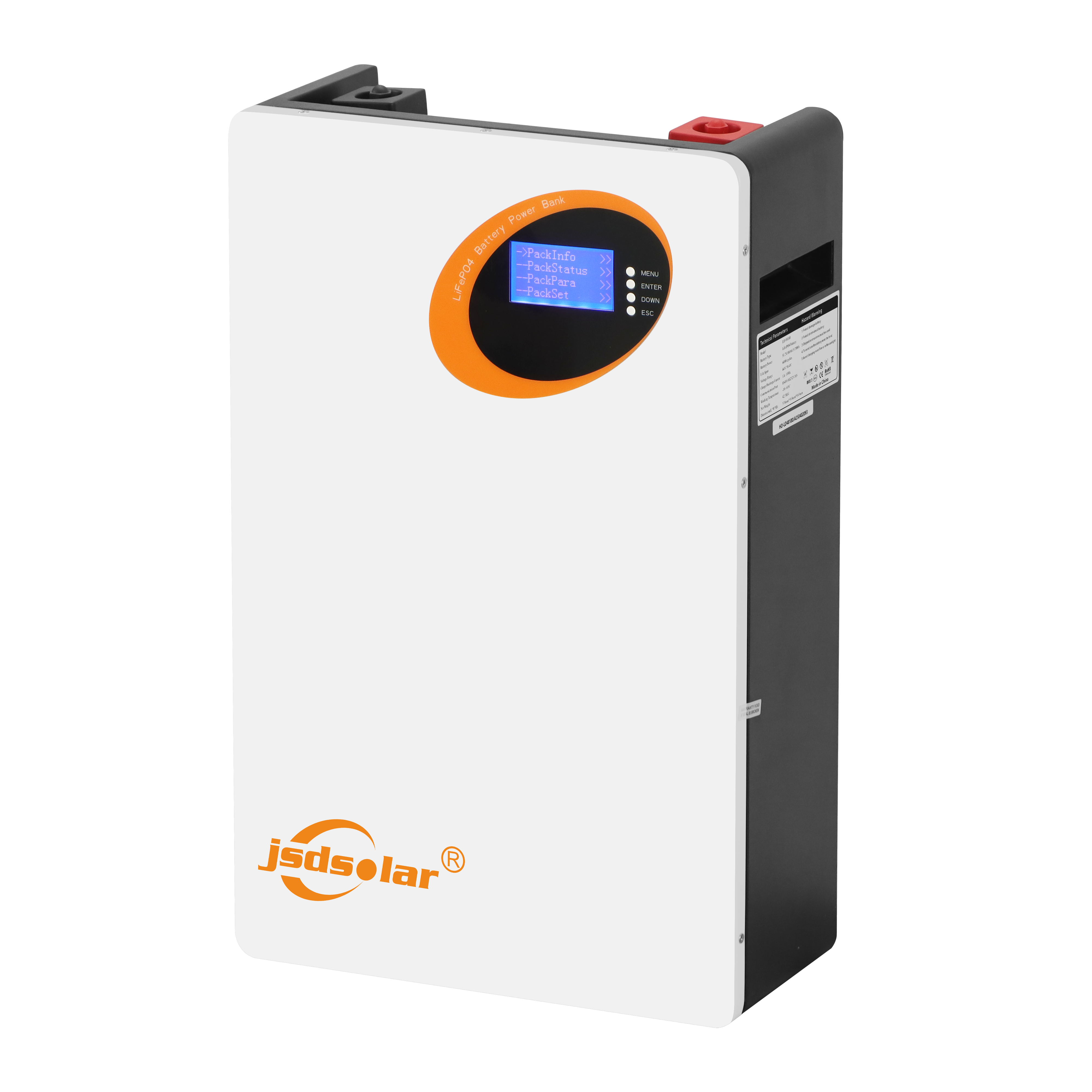

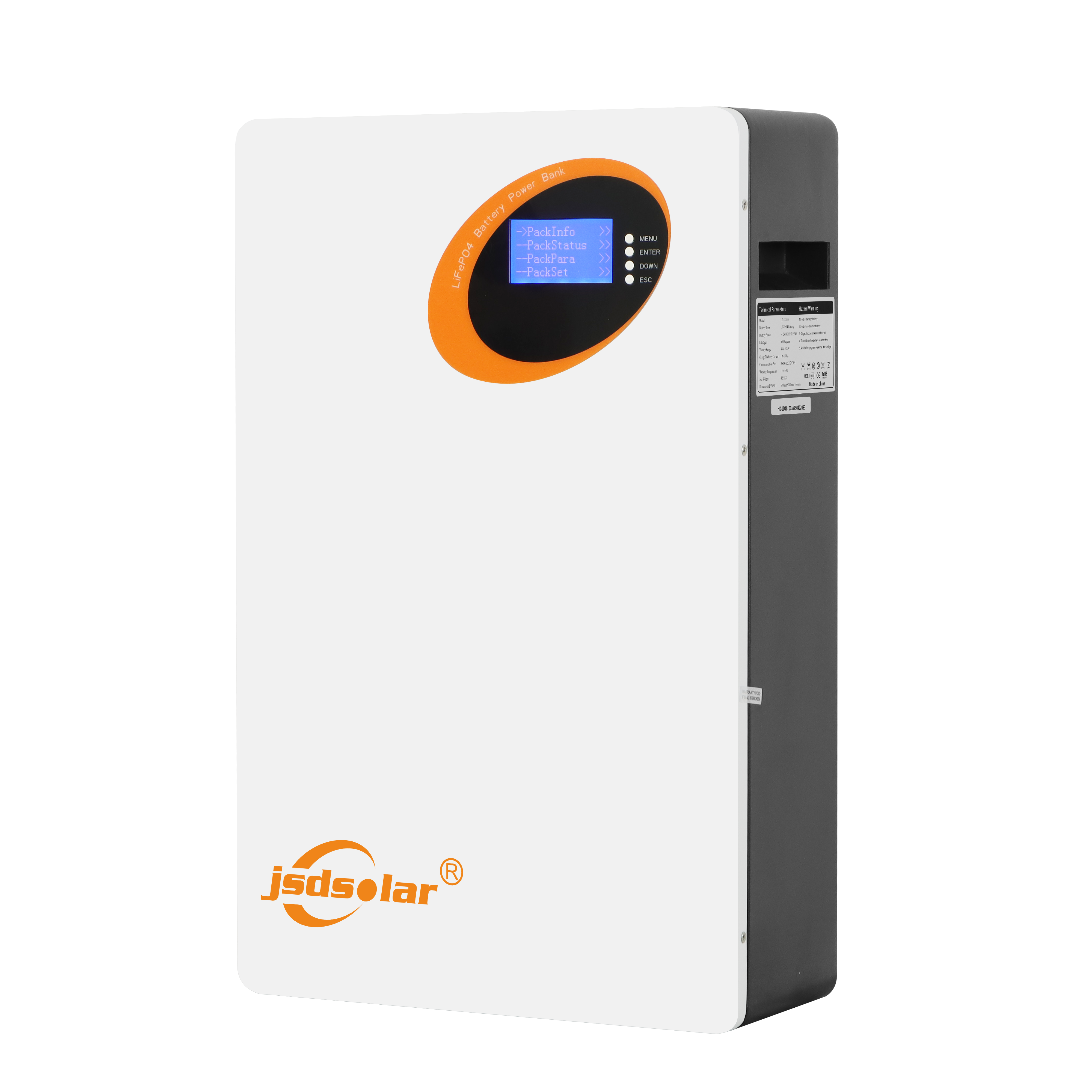

LD 48V Series-LD48100 Powerwall Battery
-
Safety and Reliable
• High energy density 3.2V 100Ah cell
• Popular LiFePO4 battery capacity: 5KWH
• Long life cycle time >6000 cycles
• Charge and discharge more balance via smart BMS -
Flexibility and Compatible
• Store energy from the grid or solar
• Total energy extends to 90KWH by parallel battery packs
• Installation: Power / Wall mounted
• Monitor and Optimize by Smartphone App / computer (optional)
-
SEND INQUIRY
Back to Product List
JSDsolar, alimenta tu hogar con energía solar inteligente
La batería LiFePO4 de 48 V y 100 Ah redefine la confiabilidad con 6,000+ ciclos profundos (80% DoD), alimentada por celdas LiFePO4 de grado A para una longevidad inigualable. Diseñado para el almacenamiento de energía solar, vehículos eléctricos y sistemas UPS industriales, cuenta con:
- Smart BMS incorporado: protección contra sobrecarga/descarga, control de temperatura y equilibrio de celdas.
- Cero mantenimiento: Diseño sin mantenimiento con una eficiencia del 98%, lo que reduce el desperdicio de energía.
- Ultraduradero: Rendimiento estable en entornos de -20 °C a 60 °C.
Con un peso de solo 47,2 kg y un diseño compacto (500494X145 mm), admite conexiones en paralelo de hasta 15 unidades (48V 1500Ah máx.). Respaldada por una garantía de 10 años y CE, RoHs, UN, esta batería garantiza la seguridad y el retorno de la inversión para aplicaciones comerciales y fuera de la red
Specificaiton
| Specification | Description |
| Total Energy | 5KWh |
| Battery Type | LiFePO4 |
| Normal Voltage | 51.2V |
| Normal Capacity | 100Ah |
| Max.Charge/Discharge Current | 100A |
| Cycle Life | > 6000cycle |
| Communication Interface | CAN / RS232 / RS485 |
| Battery Cell Brand | EVE Battery Cell |
| Dimension | 500*494*145mm |
| Weight | 47.2kg |
| Grade | A |
| Inverter | Match all hybrid and off grid inverter brands in the world |
| Installation | Power Wall mounted |
| Supply Ability | 5000 Pieces per Month |
| Certificates | CE, RoHS, UN38.3, MSDS, ISO |
Solar Energy Cases for Different Residential
Common Questions
-
Why install home energy storage batteries?
-
Store solar/grid power for outages, optimize energy use, cut bills. Solar integration ensures 24/7 power—ideal for tropical climates with frequent storms.
-
How long does your battery last?
-
Jsdsolar's quality lithium-ion models endure 8-15 years, 5x longer than lead-acid. Built to withstand high humidity and salt air common in coastal regions.
-
Are they safe for homes?
-
Our certified batteries (UL, IEC) feature fire-resistant casings and thermal controls. Avoid uncertified brands—critical in areas prone to extreme heat.
-
Compatibility with inverters?
-
Check voltage (24V/48V recommended) and communication protocols (CAN, RS485). Consult us to match local grid standards (110-120V).
-
Maintenance needed?
-
Jsdsolar lithium batteries are zero-maintenance vs. lead-acid. Ensure proper ventilation and avoid direct sunlight—key for tropical installations.
-
Cost vs. savings?
-
Higher upfront cost, but 30-50% long-term savings via solar pairing and peak-shaving. Many governments offer green energy incentives.
