LD24100 Batería de litio de 24 V 100 Ah y 2.400 Wh Powerwall para respaldo
Universal Inverter Compatibility | 2.5KWh LiFePO4 | Space-Saving Wall Design

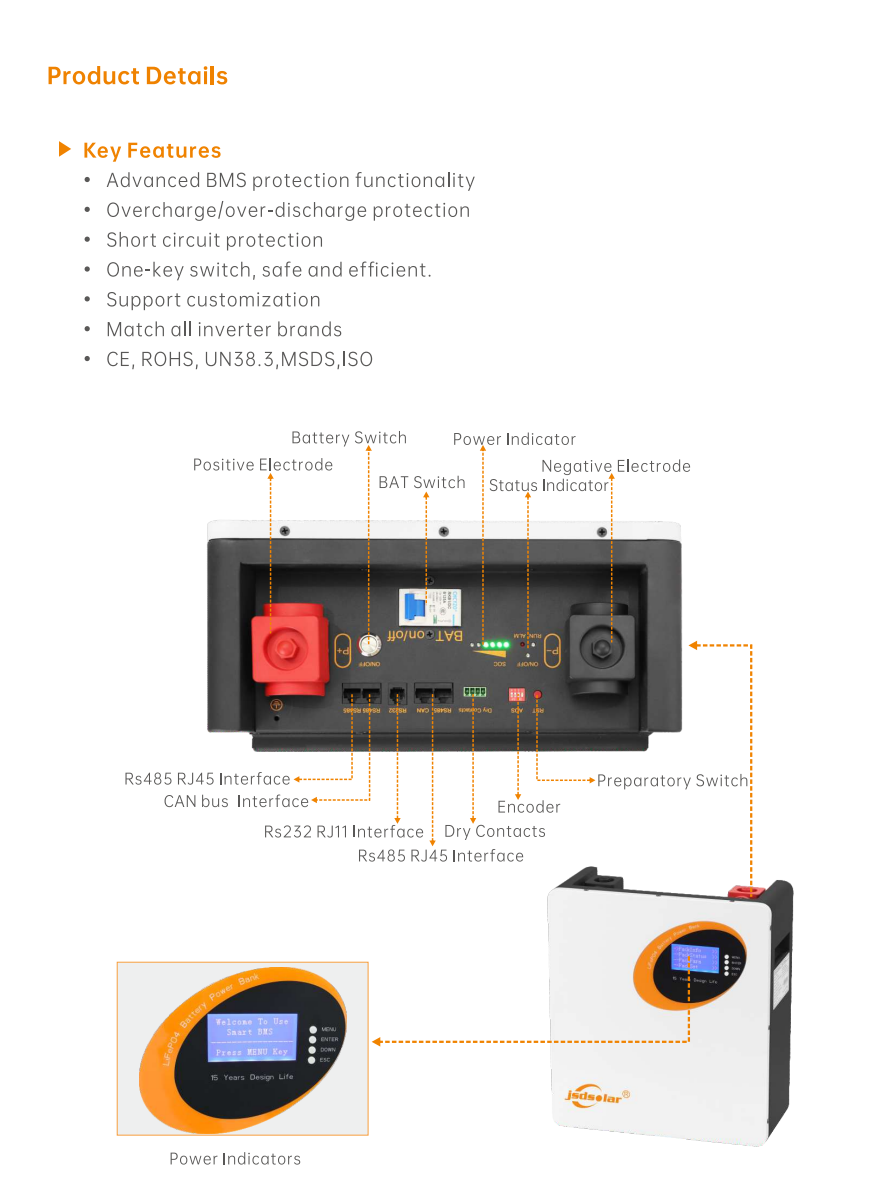

Key Information
- – Advanced BMS protection functionality
- – Overcharge/over-discharge protection
- – Short circuit protection
- – One-key switch, safe and efficient
- – Support customization
- – Match all inverter brands
- – CE, ROHS, UN38.3, MSDS, ISO
SEND INQUIRY
Back to Product List
LD24100 Sistema de almacenamiento de energía para el hogar LiFePO4 | 2.5KWh, 6000+ ciclos, solución de energía montada en la pared
Desbloquee la independencia energética con la batería LiFePO4 de LD24100, diseñada para una integración perfecta en sistemas solares residenciales o híbridos. Con una sólida capacidad de 2,5 KWh y una configuración de 25,6 V/100 Ah , esta unidad montada en la pared ofrece energía estable para las necesidades diarias del hogar, desde electrodomésticos hasta energía de respaldo durante los apagones.
Diseñado con tecnología LiFePO4, garantiza una seguridad, longevidad (>6000 ciclos) y rendimiento inigualables en temperaturas extremas (-10 °C a 60 °C). Con una corriente máxima de 100 A y compatibilidad con inversores globales, admite una carga rápida y demandas de alta potencia mientras mantiene un diseño compacto que ahorra espacio (374×335×150 mm).
Certificado según las normas CE, ROHS y UN38.3, el LD24100 prioriza la seguridad y la sostenibilidad, lo que lo convierte en la opción ideal para los propietarios de viviendas con conciencia ecológica que buscan un almacenamiento de energía duradero y escalable. Transforme la eficiencia energética de su hogar, hoy y en las próximas décadas.
Application Diagram
System Configuration
| Specification | Description |
| Model | LD24100 |
| Total Energy | 2.5KWh |
| Battery Type | LiFePO4 |
| Normal Voltage | 25.6V |
| Normal Capacity | 100Ah |
| Max.Charge/ Discharge Current | 100A |
| Battery Power | 25.6V 100AH/2560WH |
| Life Span | >6000cycle |
| Voltage Range | 22V-28.4V |
| Charge Discharge Current | 1A-100A |
| Communication Port | RS485/RS232/CAN |
| Working Temperature | -10~60℃ |
| Net weight | 23.5KG |
| Dimension(LWH) | 374*335*150mm |
| Grade | A |
| Inverter | Match all hybrid and off grid inverter brands in the world |
| Installation | Power Wall mounted |
| Certificates | UN38.3/MSDS/CE/ROHS/ISO |
Solar Energy Cases for Different Residential
Common Questions
-
Why install home energy storage batteries?
-
Store solar/grid power for outages, optimize energy use, cut bills. Solar integration ensures 24/7 power—ideal for tropical climates with frequent storms.
-
How long do batteries last?
-
Jsdsolar's quality lithium-ion models endure 8-15 years, 5x longer than lead-acid. Built to withstand high humidity and salt air common in coastal regions.
-
Are they safe for homes?
-
Our certified batteries (UL, IEC) feature fire-resistant casings and thermal controls. Avoid uncertified brands—critical in areas prone to extreme heat.
-
Compatibility with inverters?
-
Check voltage (24V/48V recommended) and communication protocols (CAN, RS485). Consult us to match local grid standards (110-120V).
-
Maintenance needed?
-
Jsdsolar lithium batteries are zero-maintenance vs. lead-acid. Ensure proper ventilation and avoid direct sunlight—key for tropical installations.
-
Cost vs. savings?
-
Higher upfront cost, but 30-50% long-term savings via solar pairing and peak-shaving. Many governments offer green energy incentives.
