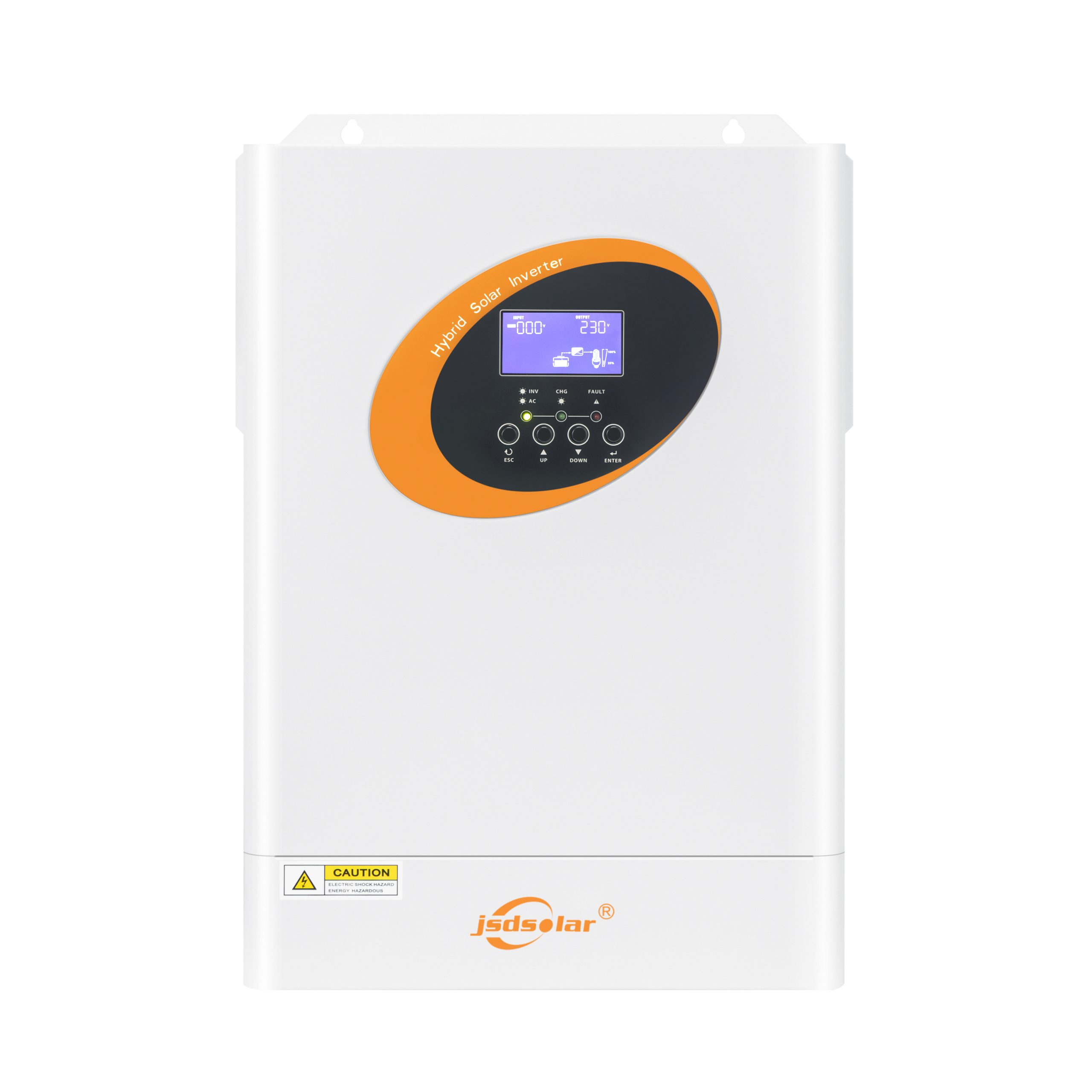

J6200HP, inversor solar de alto voltaje de 48 V y 6,2 kW, salida única de 220 V
High Voltage Inverter | 220V Output | Single Phase | Up to 12 Units Parallel
Key features
SEND INQUIRY
Back to Product List
Admite hasta 12 unidades paralelas
El J6200HP es un inversor solar de alto rendimiento con una capacidad de 6,2 KVA/6,2 KW, diseñado para satisfacer diversas necesidades energéticas. Admite el funcionamiento en paralelo de 12 unidades, lo que permite un escalado flexible para mayores requisitos de energía. Con activación de batería de litio (por PV o de servicios públicos) y comunicación avanzada de batería de litio (RS485), ofrece una integración perfecta con sistemas de energía renovable. Su voltaje nominal de entrada es de 230 VCA, que se adapta a un amplio rango de voltaje (170 - 280 VCA para computadoras personales, 90 - 280 VCA para electrodomésticos) y cuenta con una frecuencia de detección automática de 50/60 Hz. La salida proporciona un voltaje nominal estable de 220/230 VCA ± 5% con onda sinusoidal pura, lo que garantiza una energía confiable para dispositivos sensibles.
Description
Technical Data
| MODEL | J6200HP |
|---|---|
| Capacity | 6.2KVA/6.2KW |
| Parallel Capability | YES,12 Units |
| Lithium battery activation | YES(By PV or Utility) |
| Lithium battery Communication | YES(RS485) |
| INPUT | |
| Nominal Voltage | 230VAC |
| Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280vac(For Home Appliances) |
| Frequency | 50/60 Hz(Auto sensing) |
| OUTPUT | |
| Nominal Voltage | 220/230VAC±5% |
| Surge Power | 12400VA |
| Frequency | 50/60Hz |
| Waveform | Pure Sine wave |
| Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) |
| Peak Efficiency | 94% |
| Overload Protection | 5s@>=140% load;10s@110%~140% load |
| Crest Factor | 3:1 |
| Admissible Power Factor | 0.6~1 (inductive or capacitive) |
| BATTERY | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| OverCharge Protection | 63VDC |
| Charging Method | CC / CV |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Max.PV Array Power | 6500W |
| Max.PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 60VDC~450VDC |
| Max.Solar Input Current | 27A |
| Max.Solar Charge Current | 120A |
| Max.AC Charge Current | 80A |
| Max.Charge Current | 120A |
| PHYSICAL | |
| Dimensions,D×W×H(mm) | 450300130 |
| Package Dimensions,D×W×H(mm) | 540x390x210 |
| Net Weight(Kg) | 12 |
| Communication Interface | RS232 / RS485 |
| ENVIRONMENT | |
| Operating Temperature Range | (-10℃ to 50℃) |
| Storage Temperature | (-15℃ ~ 50℃) |
| Humidity | 5% to 95% Relative Humidity (Non – condensing) |
Solar Energy Cases for Different Residential
Common Questions
-
Will Jsdsolar inverter shut down in extreme heat?
-
Our high-quality inverters include thermal protection and cooling systems. Ensure proper ventilation and avoid direct sunlight installation to maintain stable operation in hot climates.
-
How does an inverter handle frequent power surges?
-
Jsdsolar's stable inverters feature surge protection (e.g., 150% overload capacity) and voltage regulation to safeguard connected devices during grid fluctuations or storms.
-
Can saltwater exposure damage the inverter?
-
Opt for inverters with IP65-rated waterproof enclosures and corrosion-resistant materials, especially in coastal areas. Regular cleaning of terminals prevents salt buildup.
-
Will your inverter work with different battery types?
-
Compatible inverters support lithium-ion, lead-acid, and gel batteries. Verify voltage compatibility (typically 24V/48V) and consult specifications before pairing.
-
How often should I maintain my inverter?
-
Bi-annual inspections are recommended: clean vents, check cable integrity, and update firmware. Professional servicing every 2-3 years ensures optimal performance.
